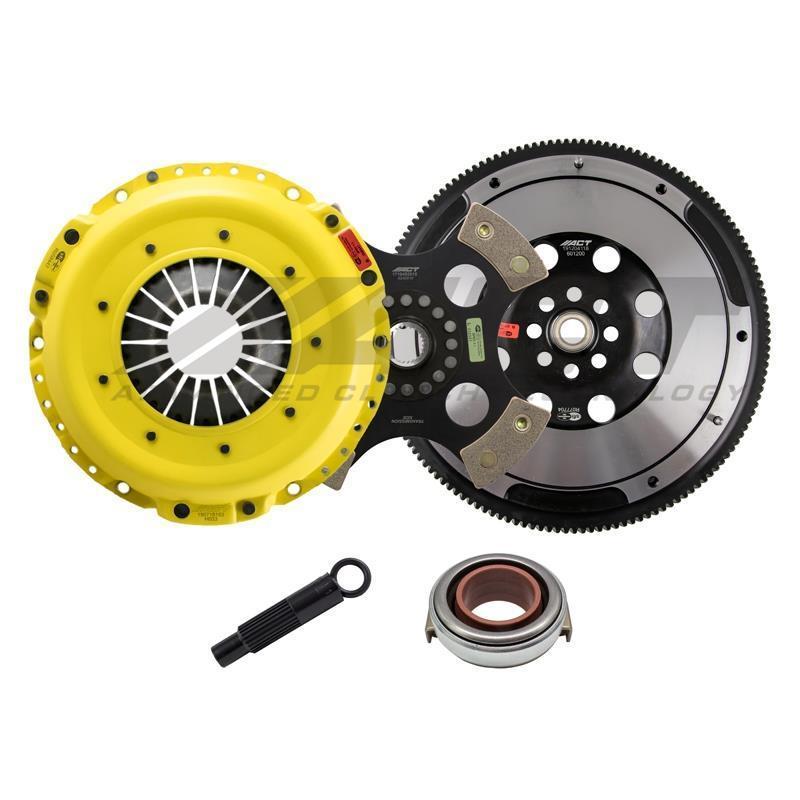

ACT HD Race 4 Pad Rigid Clutch Kit - Honda Civic Type-R FK8

Regular Price
$1,111.00
Sale Price
$1,111.00
Regular Price
Sold Out
Unit Price
per
Shipping calculated at checkout.

The 10th Generation Civic Type R is the ultimate Honda-lovers goal. Already responsive and powerful as delivered, this latest platform is being explored for serious transformations in power output. As those improvements surpass the capabilities of the OE clutch components, ACT is again stepping up to provide the latest clutch developments - just as Honda drivers have counted on for over two decades.

HC12-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Torque Capacity (ft/lbs.) 527
  • Torque Capacity Over OE 71%
  • Disc Material Ceramic
  • Friction Surface Diameter (Inches) 9.4
  • Friction Surface Diameter (mm) 240
  • Input Shaft Diameter (Inches) 1.0325
  • Spline Count 24
  • Disc Type Rigid Race Disc
  • Pressure Plate Type Heavy Duty
  • Flywheel Type Streetlite
  • Flywheel Tooth Quantity 149
  • Flywheel Mounting Hole Quantity 8

Benefits

  • Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
