IAG 550 2.5L Subaru Short Block for WRX, STI, Legacy GT, Forester XT - 550 BHP

Regular Price
$4,265.97
Sale Price
$4,265.97
Regular Price
Sold Out
Unit Price
per
Shipping calculated at checkout.

Oil Pickup - Baffle: IAG Oil Pickup

Seal Kit: Wrist Pin / Cover Seals

IAG 550 Short Block Includes:

  • Case Halves - Brand new Subaru OEM case halves 99.5mm stock bore
  • Pistons - IAG-Spec JE 99.5mm Forged Pistons, Ring Set, .180" Chromoly Pins, Clips, (Perfect Skirt Coating and Offset Wrist Pin)
  • Connecting Rods - IAG-Spec H-Beam Rods with ARP2000 rod bolts
  • Rod / Main Bearings - ACL or King Race Bearings
  • Crankshaft - Standard New Subaru Nitride Treated 2017+ STI Crankshaft
  • Case / Main Bolts - Standard FHI Subaru case bolt
  • Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255), 8.2:1 on B, V, and W EJ257 Heads with standard thickness gasket.

Power: The IAG 550 Short Block has a power output rating of 550 BHP

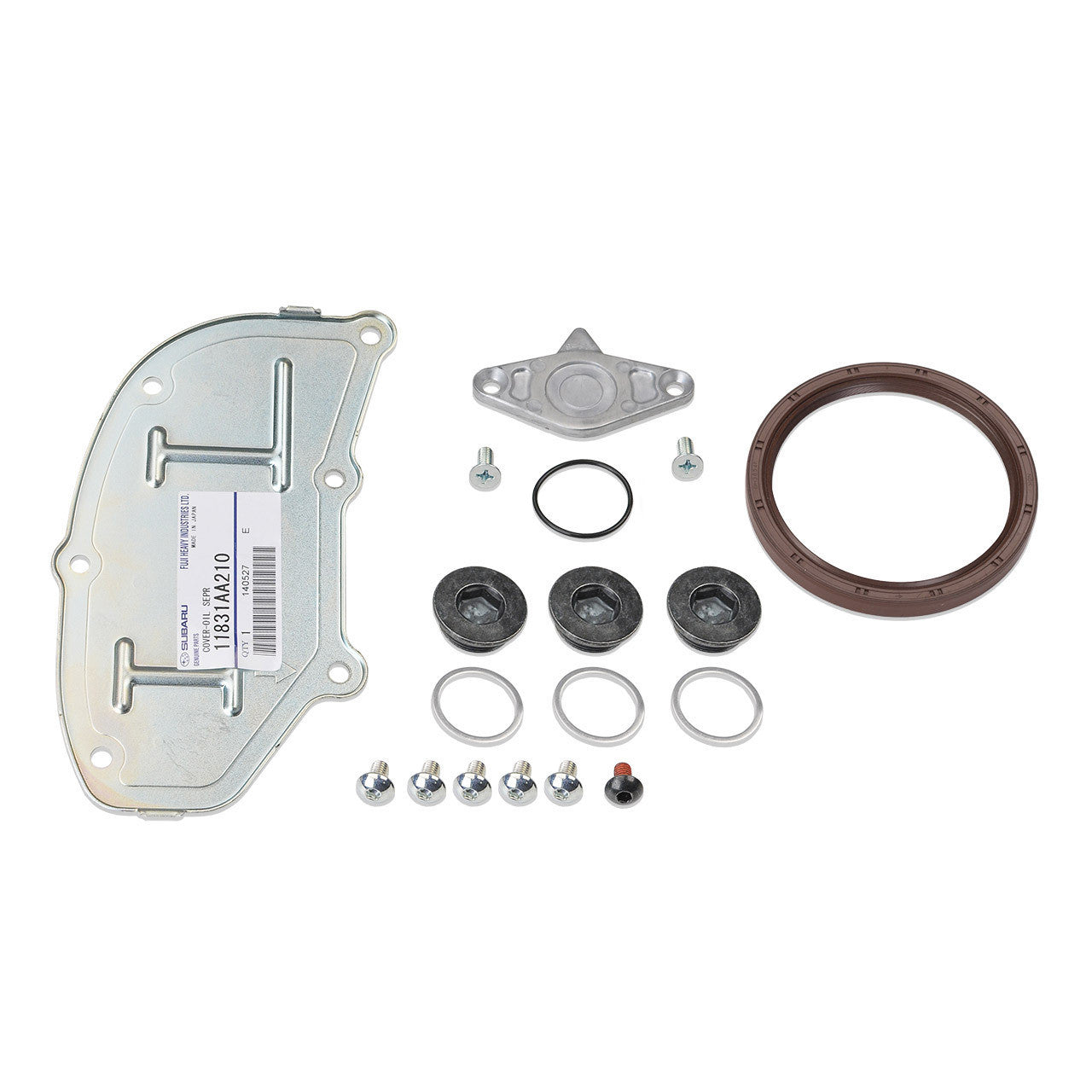

Not planning on reusing your original short block service plugs and covers? IAG offers a simple comprehensive cover and seal kit that includes (1) Rear main seal, (3) OEM wrist pin plugs, (3) OEM wrist pin plug washers, (1) OEM separator cover, (6) OEM separator cover bolts, (1) OEM wrist pin service cover, (1) OEM wrist pin service cover O-ring and (2) OEM wrist pin service cover screws. *If you are reusing your original wrist pin service plugs and covers always replace the (3) OEM wrist pin plug washers and (1) wrist pin service cover O-ring before installing a short block to avoid potential leaks. *Never reuse a rear main seal on a new short block.

The IAG Performance Subaru WRX / STI oil pickup was designed by Tigwerks to replace the OEM EJ25 oil pickup, which is prone to failure. It's a well-known fact that the OEM oil pickups often crack and fail which, in most cases, destroys your engine from lack of oil pressure. To avoid the cracking failures seen in the OEM oil pickup tubes, the Tigwerks oil pickup is manufactured from heavy-gauge steel tubing that is 3x thicker than OEM. Additionally, it features a flange machined from 3/8" 1018 CR steel to mate with the block, sealed with a Viton O-ring. The integrated heavy-duty mounting bracket uses two mounting points rather than the OEM single mounting point. Furthermore, the oil pickup features a formed bottom with an OEM style mesh screen for proper filtration. The TIG-welded oil pickup's increased material thickness, matched with the two-point heavy-duty mounting bracket, helps ensure that it does not fatigue and fail over time like an OEM unit.

The IAG Oil Control Baffle and Windage Tray System is designed to limit potential blow-by and prevent oil starvation in your Subaru's WRX / STI EJ engine during high rpm and high g-force driving. Through the use of Viton one-way flapper valves on our baffle and louvers in our windage tray, oil is prevented from reentering the upper crankcase area and is directed down into the oil pan to ensure plentiful supply to the oil pickup. IAG's integrated two-piece Oil Control Baffle and Windage Tray System is designed to work with our own oil pickup, as well as other oil pickups*. The baffle fits neatly in the engine crankcase area, allowing normal installation of the OEM oil pan and popular aftermarket pans*.

Oil Pickup & Baffle Install Notes

  • EJ20 Subaru WRX engines require EJ25 oil pans for fitment
  • IAG oil pickup spacer (Part# IAG-ENG-2081SP) is required when using IAG oil pickup with Killer B Oil Pan.
  • *Does not work with Moroso oil pans or pickups
