IAG Stage 4 Extreme EJ25 Subaru Closed Deck Short Block For WRX, STI, LGT, FXT

Regular Price
$9,284.97
Sale Price
$9,284.97
Regular Price
Sold Out
Unit Price
per
Shipping calculated at checkout.

Oil Pickup - Baffle: IAG Oil Pickup

Oil Pump: Subaru JDM 12mm Oil Pump

Seal kit: Wrist pin / Cover Seals

IAG Stage 4 Extreme Closed Deck EJ25 Subaru Short Block

The IAG Stage 4 Extreme Short Block starts with brand new Subaru 2.5L EJ25 engine case halves. The case halves are split and the main webs are CNC machined in our Haas VF-4SS CNC mill for 9.5mm pins to reduce distortion and movement of the case in extreme conditions. The case halves are then reassembled and IAG machines the case to accept the IAG CLOSED Deck Inserts that transform the block into a solid deck. The unique inserts feature small passages that allow needed coolant flow to the deck surface. The case halves are then CNC machined for our new Fire-Lock head gasket solution that is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The Stage 4 Extreme case is CNC drilled and tapped to fit 14mm head studs. Utilizing the new Fire-Lock gasket solution along with larger IAG / ARP 14mm head studs, nuts, and washers reduce the chances of the heads lifting under extreme boost conditions. The short block is then Deck Plate bored and honed to 99.75mm in our in-house Sunnen SV-30 the most advanced automotive cylinder hone available. IAG‘s in-house honing process is able to set custom piston to wall clearances to best fit your needs. The modified case halves are then assembled using a IAG Billet crankshaft by Callies that is matched to ACL or King race main bearings. Custom IAG TRI-BEAM +2mm connecting rods by Manley and ARP 625+ rod bolts are utilized along with ACL or King race rod bearings. The case halves are sealed with OEM sealant and ARP main bolts. IAG-Spec 99.75mm Custom Forged Pistons with .250" / .927" wrist pins with electroless nickel plated tops and ring area are chosen to finish the Stage 4 Extreme short block. IAG‘s custom pistons feature a lightweight design while increasing strength where you need it and are designed to work exclusively with the IAG +2mm Tri-Beam connecting rods. The wrist pin is short and is made from strong H13 tool steel. The pin piers are profiled to increase pin boss strut. Finally, IAG‘s pistons feature a 25% larger oil ring for reduced oil consumption and added gas ports that aid ring sealing in high boost conditions.



Additional Options Available:

  • Head Studs - IAG / ARP 14mm head studs, nuts, and washers - $550 PN# IAG-ENG-1711 PRODUCT ORDERED SEPARATELY CLICK HERE.
  • Oil Pump - Subaru JDM 12mm High Volume Oil Pump - $219 PN# 15010AA310 or 11mm Subaru Oil Pump - $199.95 PN# 15010AA360

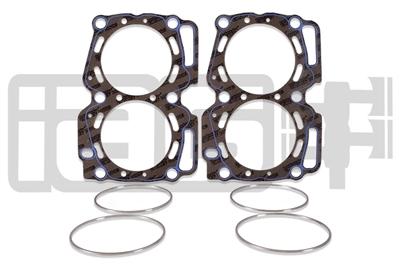

  • Head Gaskets - IAG Fire-Lock .051" Head Gaskets with IAG-Spec Alloy Ring Set* Required for use with this short block -$249.99 PN# IAG-ENG-1740 PRODUCT ORDERED SEPARATELY CLICK HERE.
  • IAG Oil Pickup - Upgraded oil pickup featuring heavy gauge steel tubing, 2 point bracket & mesh filter - $129.99 PN# IAG-ENG-2082
  • IAG Oil Baffle - Upgraded oil control baffle and windage tray - $199.99 PN# IAG-ENG-2087
  • IAG Oil Pickup & Baffle Set - Upgraded oil pickup, oil control baffle, and windage tray - $299.99 PN# IAG-ENG-2101
  • Hardware / Seal Option - $105.99 (Wrist pin plugs, washers, separator cover, bolts, etc. In case you don’t want to transfer from the original engine). PN# IAG-ENG-1720

Additional Options Available:

  • Head Studs - IAG / ARP 14mm head studs, nuts, and washers - $550 PN# IAG-ENG-1711 PRODUCT ORDERED SEPARATELY CLICK HERE.
  • Oil Pump - Subaru JDM 12mm High Volume Oil Pump - $219 PN# 15010AA310 or 11mm Subaru Oil Pump - $199.95 PN# 15010AA360
  • Head Gaskets - IAG Fire-Lock .051" Head Gaskets with IAG-Spec Alloy Ring Set* Required for use with this short block -$249.99 PN# IAG-ENG-1740 PRODUCT ORDERED SEPARATELY CLICK HERE.
  • IAG Oil Pickup - Upgraded oil pickup featuring heavy gauge steel tubing, 2 point bracket & mesh filter - $129.99 PN# IAG-ENG-2082
  • IAG Oil Baffle - Upgraded oil control baffle and windage tray - $199.99 PN# IAG-ENG-2087
  • IAG Oil Pickup & Baffle Set - Upgraded oil pickup, oil control baffle, and windage tray - $299.99 PN# IAG-ENG-2101
  • Hardware / Seal Option - $105.99 (Wrist pin plugs, washers, separator cover, bolts, etc. In case you don’t want to transfer from the original engine). PN# IAG-ENG-1720


    Compression Ratio:

    • 8.5:1 on D Cylinder Heads (EJ255)
    • 8.2:1 on B, V and W EJ257 Heads with standard thickness gasket.


    Head Gasket Required:

    • *IAG Fire-Lock .051" Head Gaskets with IAG-Spec Alloy Ring Set* PN# IAG-ENG-1740


      Power: The IAG Stage 4 Extreme Short Block has a power output rating of 1100BHP.

      *All IAG short blocks are balanced and blueprinted.

      Oil Pickup / Oil Control Baffle / Windage Tray Options:

      Subaru EJ25 Seal Kit

      The IAG Performance Subaru WRX / STI oil pickup was designed by Tigwerks to replace the OEM EJ25 oil pickup, which is prone to failure. It’s a well-known fact that the OEM oil pickups often crack and fail which, in most cases, destroys your engine from lack of oil pressure. To avoid the cracking failures seen in the OEM oil pickup tubes, the Tigwerks oil pickup is manufactured from heavy-gauge steel tubing that is 3x thicker than OEM. Additionally, it features a flange machined from 3/8” 1018 CR steel to mate with the block, sealed with a Viton O-ring. The integrated heavy-duty mounting bracket uses two mounting points rather than the OEM single mounting point. Furthermore, the oil pickup features a formed bottom with an OEM style mesh screen for proper filtration. The TIG-welded oil pickup's increased material thickness, matched with the two-point heavy-duty mounting bracket, helps ensure that it does not fatigue and fail over time like an OEM unit.

      The IAG Oil Control Baffle and Windage Tray System is designed to limit potential blow-by and prevent oil starvation in your Subaru’s WRX / STI EJ engine during high rpm and high g-force driving. Through the use of Viton one-way flapper valves on our baffle and louvers in our windage tray, oil is prevented from reentering the upper crankcase area and is directed down into the oil pan to ensure plentiful supply to the oil pickup. IAG’s integrated two-piece Oil Control Baffle and Windage Tray System is designed to work with our own oil pickup, as well as other oil pickups*. The baffle fits neatly in the engine crankcase area, allowing normal installation of the OEM oil pan and popular aftermarket pans*.

      Oil Pickup & Baffle Install Notes

      • EJ20 Subaru WRX engines require EJ25 oil pans for fitment
      • IAG oil pickup spacer (Part# IAG-ENG-2081SP) is required when using IAG oil pickup with Killer B Oil Pan.
      • *Does not work with Moroso oil pans or pickups



      Hardware / Seal Option:


      Not planning on reusing your original short block service plugs and covers? IAG offers a simple comprehensive cover and seal kit that includes (1) Rear main seal, (3) OEM wrist pin plugs, (3) OEM wrist pin plug washers, (1) OEM separator cover, (6) OEM separator cover bolts, (1) OEM wrist pin service cover, (1) OEM wrist pin service cover O-ring and (2) OEM wrist pin service cover screws. *If you are reusing your original wrist pin service plugs and covers always replace the (3) OEM wrist pin plug washers and (1) wrist pin service cover O-ring before installing a short block to avoid potential leaks. *Never reuse a rear main seal on a new short block.


      Please review the PDF document below regarding installation, break-in procedures and warranty information.
